MS Windows, Hyper-V, S2D Monitoring

LPAR2RRD is able to monitor stand-alone Microsoft Windows servers, Microsoft Hyper-V and Microsoft Storage Spaces Direct (S2D) performance metrics.
Implementation is done through single Windows OS agent running on any Windows host in the Windows domain.
This OS agent gets all required configuration from the AD and performance data of monitored hosts through WMI.
It passes such data to LPAR2RRD server running on Linux where data is saved and presented.

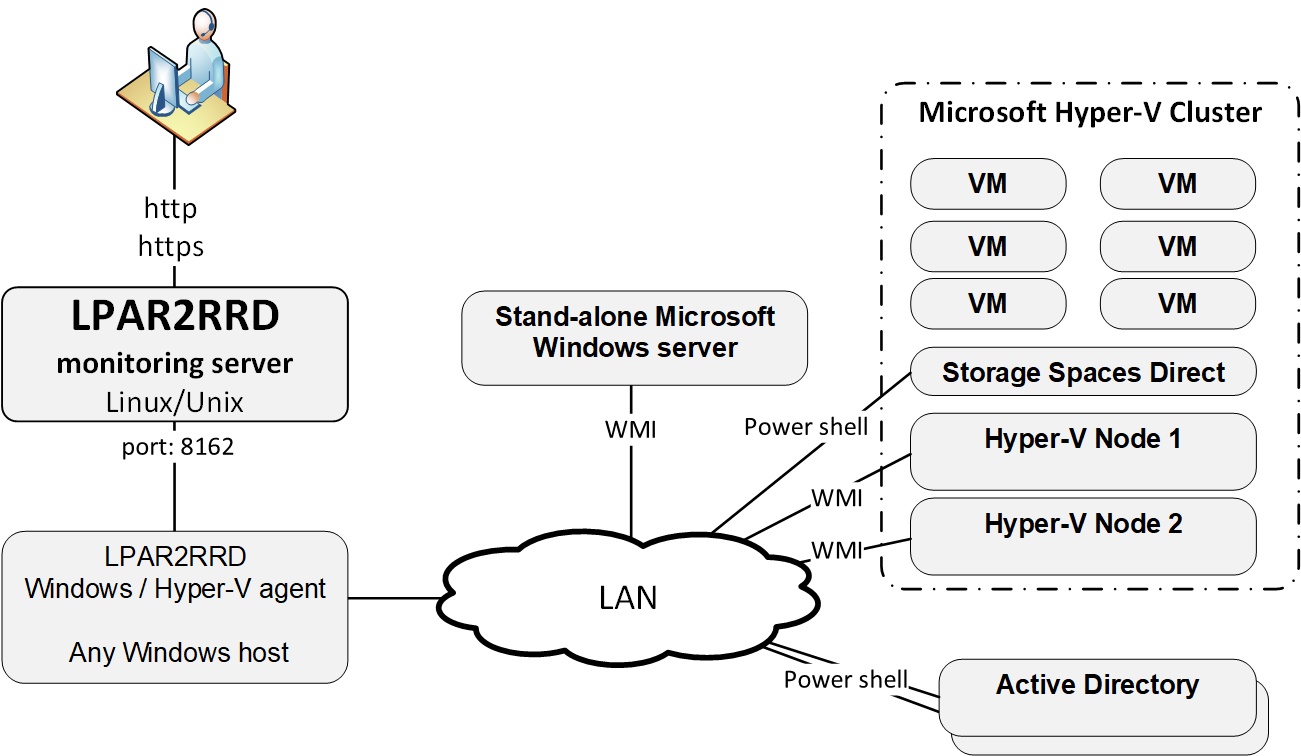

Hyper-V schema

Monitored components

  • MS Windows server
  • Hyper-V Cluster
  • Hyper-V Cluster node
  • Hyper-V Disk
  • Hyper-V Virtual Machine
  • Microsoft Storage Spaces Direct (S2D)

Monitored metrics

  • CPU
  • Memory utilization
  • Paging
  • LAN throughput MB/sec
  • Disk throughput MB/sec
  • Disk throughput IOPS
  • Disk latency
  • Disk capacity

S2D monitored metrics

  • Volume IOPS
  • Volume Data MB/sec
  • Volume Latency
  • Volume Capacity
  • PhysicalDisk(Drive) IOPS
  • PhysicalDisk(Drive) Data MB/sec
  • PhysicalDisk(Drive) Latency

Feature matrix - Hyperv-V/Server

Cluster Hyper-V Node Win server VM
CPU Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring
CPU aggregated Microsoft Windows Hyper_V performance monitoring
Memory Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring
Disk usage Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring
Disk IOPS Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring
Disk Latency Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring
Disk Capacity Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring
Network Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring Microsoft Windows Hyper_V performance monitoring

Check out our free demo site to see examples.

S2D monitoring examples

Microsoft S2D performance monitoring volume total

Microsoft S2D performance monitoring volume

Microsoft S2D performance monitoring drive


Win OS agent release notes

Agent compatability

LPAR2RRD Windows OS agent works everywhere where is available PowerShell 3 and higher
It does not directly depends on Windows version, if you are able to upgrade PowerShell to 3.0+ on older Windows machines then it will work.
