Virtual Appliance installation

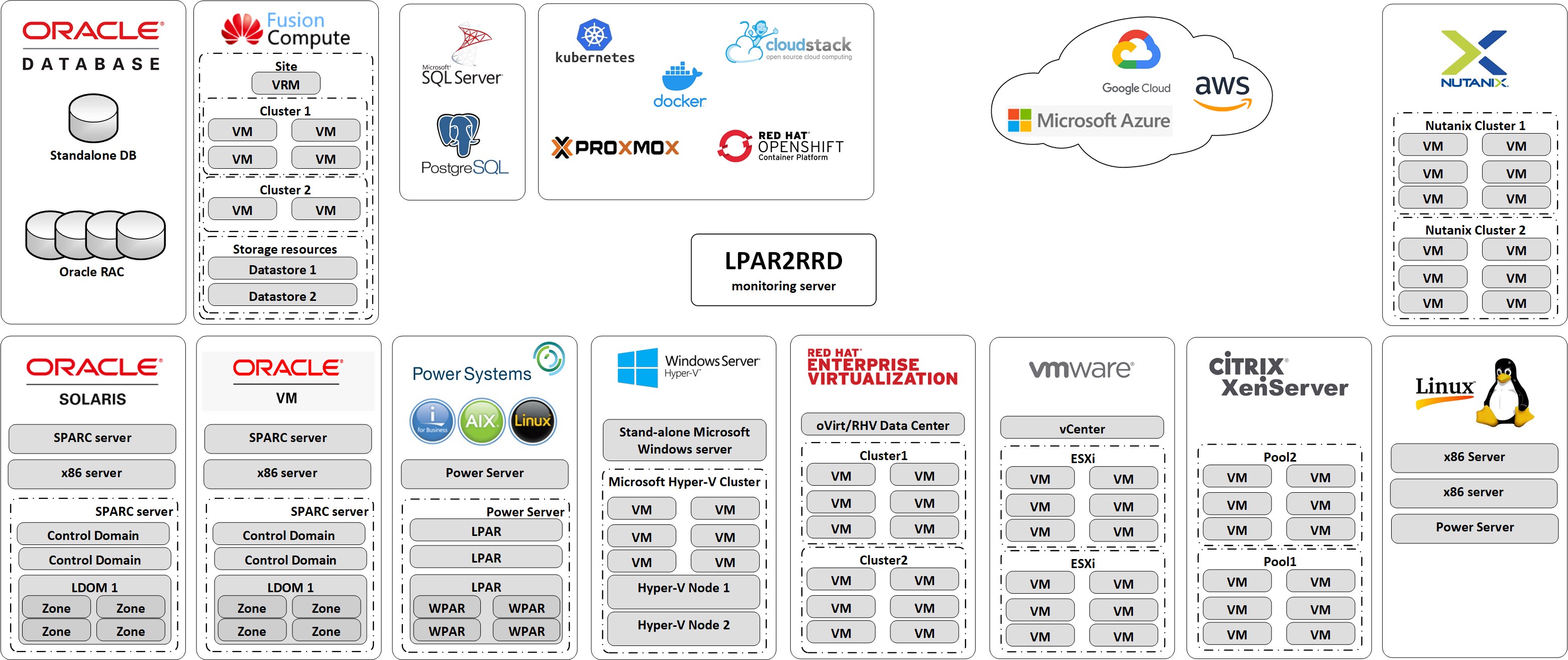

server performance monitoring system diagram detail

Access summary

Technology Data source Interface User role Used ports Note
IBM Power Systems HMC HMC CLI read-only LPAR2RRD ➡ HMC:22
HMC HMC
REST API
read-only LPAR2RRD ➡ HMC:12443
OS agent OS cmds not privileged account Agent ➡ LPAR2RRD:8162 AIX, IBM i,
PowerLinux
Linux stand-alone OS agent OS cmds not privileged account Linux ➡ LPAR2RRD:8162
VMware vCenter SDK CLI read-only LPAR2RRD ➡ vCenter:443
OS agent OS cmds not privileged account Agent ➡ LPAR2RRD:8162 Linux,
Solaris x86
Nutanix Prism Central REST API View LPAR2RRD ➡ Prism:9440
Prism Element REST API View LPAR2RRD ➡ Prism:9440
IBM Db2 IBM Db2 ODBC view LPAR2RRD ➡ Db2:25010
Oracle Database DB instance SQL select_catalog_role LPAR2RRD ➡ DB:1521
Oracle VM OVM Manager REST API admin LPAR2RRD ➡ OracleVM:7002
Oracle Solaris OS agent OS cmds not privileged account Solaris ➡ LPAR2RRD:8162 Zone
Oracle Solaris LDOM OS agent OS cmds not privileged account LDOM ➡ LPAR2RRD:8162 LDOM,
Global Zone
oVirt
RHV
OLVM
oVirt server ovirt_engine_history database admin
(just hist db)
LPAR2RRD ➡ RHV:5432
XenServer
Citrix Hypervisor
XenServer OS cmds
XCP RRDD
read-only LPAR2RRD ➡ XenServer:22
443
MS Windows
Server, Hyper-V
Win Server,
MS Hyper-V
WMI read-only Win Server ➡ LPAR2RRD:8162
Linux OS agent OS cmds not privileged account Linux ➡ LPAR2RRD:8162
Hitachi
Compute Blade
HVM host HvmSh API read-only LPAR2RRD ➡ HVM:623/23250
AWS Amazon CloudWatch AWS CLI read-only LPAR2RRD ➡ AWS:443
Google Cloud Google Cloud Monitoring API Google SDK (for token) / REST API viewer LPAR2RRD ➡ Cloud:443
Azure Azure REST API REST API Monitoring reader LPAR2RRD ➡ Azure:443
OpenShift OpenShift REST API read-only (actions: get, view, list) LPAR2RRD ➡ Kubernetes:443/6443
Kubernetes Kubernetes REST API read-only (actions: get, view, list) LPAR2RRD ➡ Kubernetes:443/6443
Docker Docker REST API not privileged account Docker ➡ LPAR2RRD:8162
PostgreSQL PostgreSQL SQL read-only LPAR2RRD ➡ PostgreSQL:5432
EDB EDB SQL read-only LPAR2RRD ➡ EDB:5432
Microsoft SQL Server MS SQL Server ODBC view role LPAR2RRD ➡ SQL Server:1433
Proxmox Proxmox REST API read-only LPAR2RRD ➡ Proxmox:8006
CloudStack CloudStack REST API read-only LPAR2RRD ➡ CloudStack:8080
Huawei FusionCompute FusionCompute REST API auditor LPAR2RRD ➡ FusionCompute:7443
